Ultra-high-performance high speed T-shirt ABA film blowing machine

Film Layer:double/three layer
Width:200mm~500mm
Thickness of product:0.006mm~0.08mm
Material used:HDPE\CaCO₃.
Output range: 30~140kg/h

Email Whatsapp

Product Description:

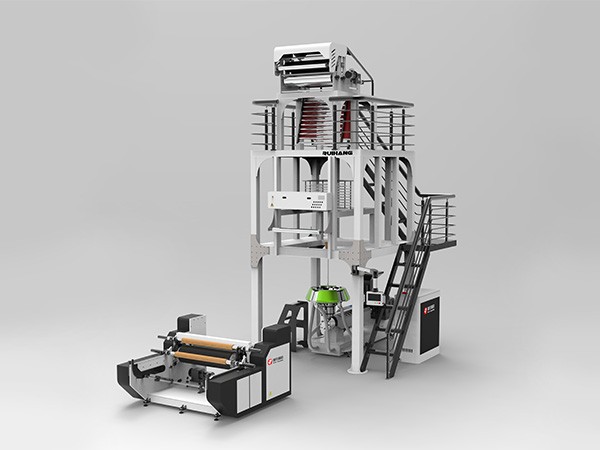

2cmj-50-850 model ultra-high-speed T-shirt bag film blowing machine

Equipment Introduction:

High quality and high output screws.Delta reluctance motor, high energy-saving motor.High performance air ring.The weighing control system: An integrated weight control system designed and produced by Ruihang, controlled by PLC, which can achieve functions such as automatic weighing, remote debugging, and remote data viewing.The device of insert edge:Auto edge insertion.Ruihang’s New type Auto Roll Changer.

Equipment features:

The equipment has higher intelligence, higher output, and lower energy consumption. It adopts the ABA structure form, with superior and stable performance, It is equipped with an auto roll changing device and an integrated control system developed by Ruihang, which is more automated and intelligent.

Technical Specifications

Madel Name	Ultra-high-speed T-shirt bag film blowing machine
Final product	T-shirt bag，HDPE flat bag
Application	T-shirt bag，HDPE flat bags
Material used	HDPE\CaCO₃
Output range	30~140 kg/h
Film layer	Double/three layer
Screw diameter	50mm
Screw L/D	30：1,32：1
Screw Material	High qulaity
Width	200mm-500mm (customized according to customer's packaging)
Thickness	0.006~0.08mm
Optional Devices	-----
Delivery Time	60 days
Warranty	1 year
Technical Assistance	Engineers available to service machinery overseas
